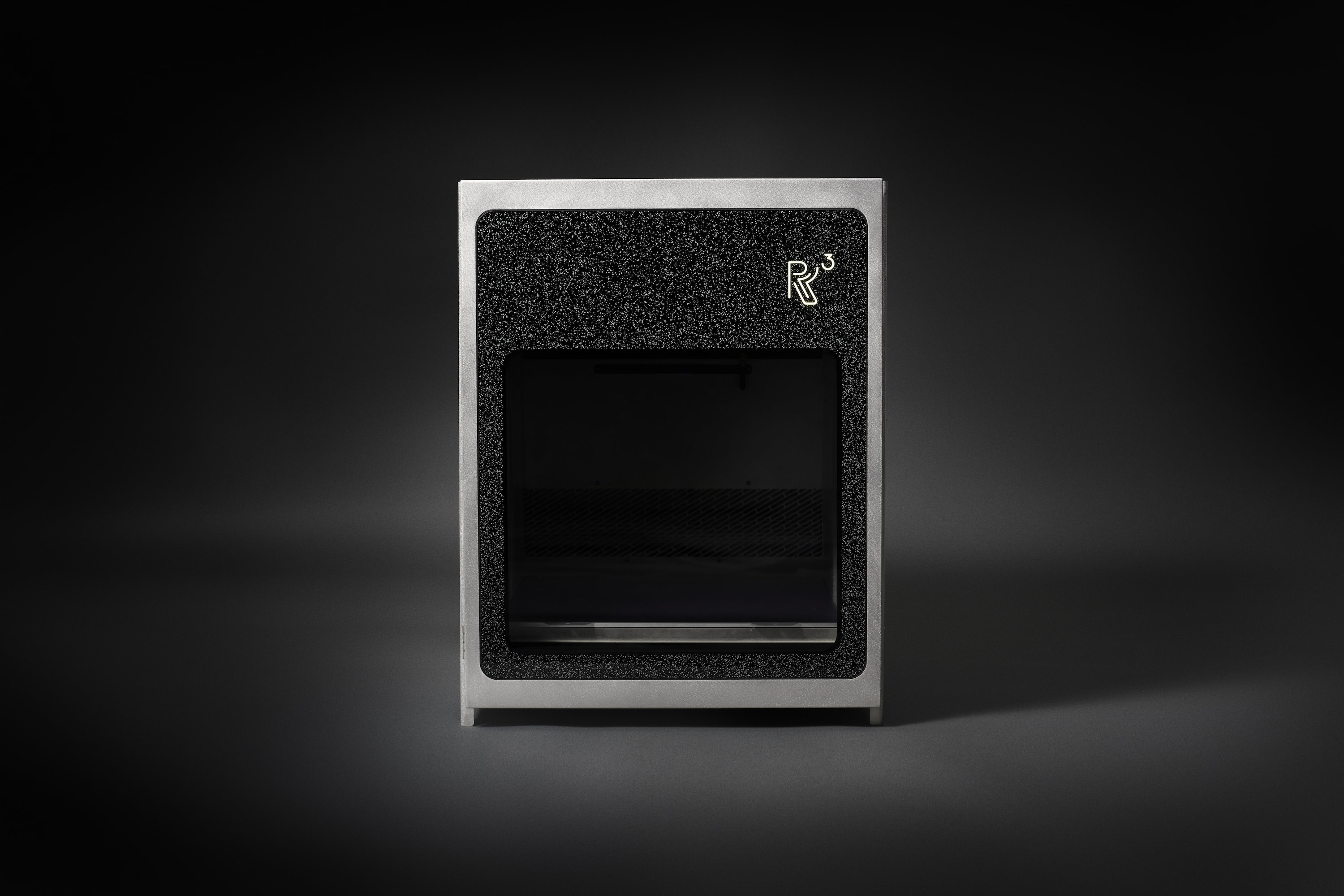

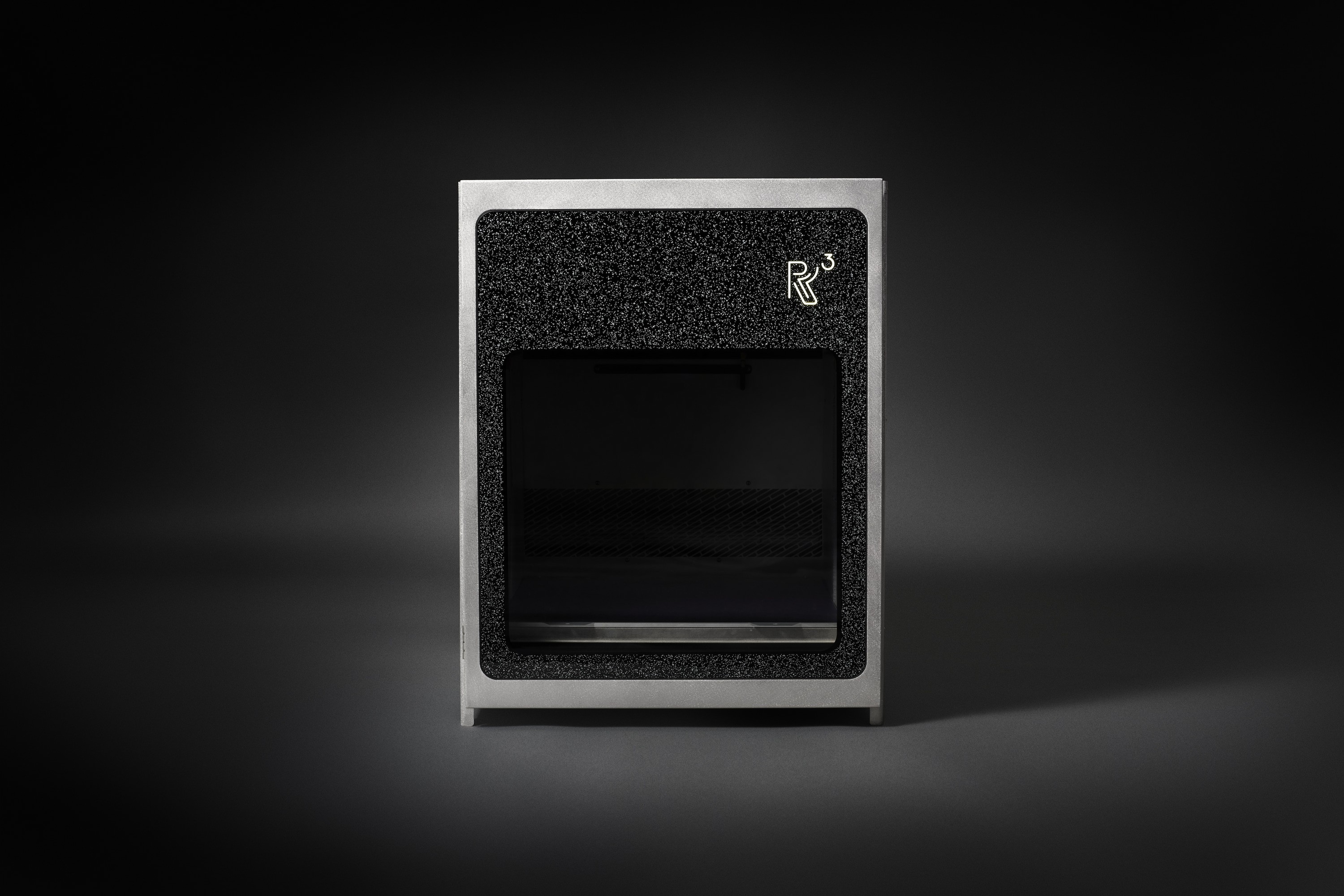

R3 Printer Ultra
Manufacturing, extreme.
The ultimate machine for manufacturing in all materials, including PEEK, PEKK, and PEI/Ultem—and everything in between.
$49,500.00
R3 Printer Ultra is an ultra high-temperature (500°C) dual-nozzle 3D printer built for materials and applications beyond the limits of conventional systems.
A powerful actively heated chamber (150°C) and heated bed (200°C) supports ultra-performance materials like PEEK, PEKK, and PEI (Ultem) right out of the box—including carbon fiber and glass fiber-reinforced variants—without upgrades, modifications, or proprietary material lock-in.
A liquid-cooled print head enables long, uninterrupted production runs even at extreme temperatures, while Active Overheat Prevention™ constantly monitors for heat creep and other sources of jams. Fully automatic calibration and tuned material profiles virtually eliminate operator time and keep workflows efficient and predictable.
Designed and built in the USA.
Additional Features:
Material Jam Detection, Material Runout Detection, Full Self-Monitoring & Overheat Protection, and more
Technical Specifications
Technology
Technology:
Fused Filament Fabrication (FFF)
Print Head:
Dual-Nozzle with Inactive Nozzle Lift
Printing Capabilities
Build Volume:
450mm x 370mm x 370mm (X, Y, Z) [17.7in x 14.6in x 14.6in]
Max. Nozzle Temp:
500° C
Max. Build Chamber Temp:
150° C
Max. Build Plate Temp:
200° C
X/Y Resolution:
±150μm
Z Resolution (Layer Height):
50μm – 1.0mm (Default: 200μm)
Dual Material Printing:
Yes (Primary + Support, Dual Material, Dual Color)
Materials
Filament Diameter:
1.75mm
Reinforced Materials Capable:
Yes (ex. Carbon Fiber-Reinforced, Glass Fiber-Reinforced)
Material Compatibility:
Open (Non-Proprietary)
Examples of Materials: (including but not limited to)
PEEK, PEKK, PEI (Ultem), TPI, PSU, PES, PPSU, ASA, PC, PA (Nylon), CoPA, PP, PPS, PPE, PPA (HTN), PVDF, ABS, PLA, PETG, PCTG, HIPS, PVA, BVOH, etc.
Consumables
Nozzle Diameter:
0.25mm – 1.4mm (0.4mm Default)
Nozzle Material:
Abrasion-Resistant Hardened Steel with Non-Stick Coating
Rapid Nozzle Change:
Yes, No Tools Required
Build Plate:
Removable Spring Steel with Matte High-Adhesion Coating
Reliability & Uptime Features
First Layer Calibration:
Automatic
Print Head Nozzle Offset Calibration:
Automatic
Additional Features:
Liquid Cooled Print Head, Print Head Active Overheat Prevention™, Material Jam Detection, Material Runout Detection, Full Self-Monitoring & Chassis Overheat Protection
Software & Networking
Connectivity:
Ethernet: Client Mode, Direct / Point to Point Mode WiFi: Client Mode (incl. WPA3-Enterprise), Access Point Mode USB
Cloud / Internet Access:
Not Required (all functions available without internet access)
Supported File Types:
.stl, .obj, .amf, .3mf, .step
Machine Size & Weight
Machine Size:
605mm W x 585mm D x 770mm H [23.82in x 23.03in x 30.32in]
Machine Weight:
65 kg [143.3 lbs]
Chassis Construction:
5052-H32 Aluminum Exoskeleton
Power Requirements
AC Input Voltage:
120v, 20A Required
AC Input Frequency:
50Hz - 60Hz
Made in the USA
R3 Printer Ultra is designed and built in the USA.
Technical Specifications
Technology
Technology:
Fused Filament Fabrication (FFF)
Print Head:
Dual-Nozzle with Inactive Nozzle Lift
Printing Capabilities
Build Volume:
450mm x 370mm x 370mm (X, Y, Z) [17.7in x 14.6in x 14.6in]
Max. Nozzle Temp:
500° C
Max. Build Chamber Temp:
150° C
Max. Build Plate Temp:
200° C
X/Y Resolution:
±150μm
Z Resolution (Layer Height):
50μm – 1.0mm (Default: 200μm)
Dual Material Printing:
Yes (Primary + Support, Dual Material, Dual Color)
Materials
Filament Diameter:
1.75mm
Reinforced Materials Capable:
Yes (ex. Carbon Fiber-Reinforced, Glass Fiber-Reinforced)
Material Compatibility:
Open (Non-Proprietary)
Examples of Materials: (including but not limited to)
PEEK, PEKK, PEI (Ultem), TPI, PSU, PES, PPSU, ASA, PC, PA (Nylon), CoPA, PP, PPS, PPE, PPA (HTN), PVDF, ABS, PLA, PETG, PCTG, HIPS, PVA, BVOH, etc.
Consumables
Nozzle Diameter:
0.25mm – 1.4mm (0.4mm Default)
Nozzle Material:
Abrasion-Resistant Hardened Steel with Non-Stick Coating
Rapid Nozzle Change:
Yes, No Tools Required
Build Plate:
Removable Spring Steel with Matte High-Adhesion Coating
Reliability & Uptime Features
First Layer Calibration:
Automatic
Print Head Nozzle Offset Calibration:
Automatic
Additional Features:
Liquid Cooled Print Head, Print Head Active Overheat Prevention™, Material Jam Detection, Material Runout Detection, Full Self-Monitoring & Chassis Overheat Protection
Software & Networking
Connectivity:
Ethernet: Client Mode, Direct / Point to Point Mode WiFi: Client Mode (incl. WPA3-Enterprise), Access Point Mode USB
Cloud / Internet Access:
Not Required (all functions available without internet access)
Supported File Types:
.stl, .obj, .amf, .3mf, .step
Machine Size & Weight
Machine Size:
605mm W x 585mm D x 770mm H [23.82in x 23.03in x 30.32in]
Machine Weight:
65 kg [143.3 lbs]
Chassis Construction:
5052-H32 Aluminum Exoskeleton
Power Requirements
AC Input Voltage:
120v, 20A Required
AC Input Frequency:
50Hz - 60Hz
Made in the USA
R3 Printer Ultra is designed and built in the USA.
Which R3 Printer is right for you?
Here's a breakdown of all the key differences between R3 Printer and R3 Printer Ultra:
R3 Printer handles the vast majority of production applications with advanced materials and reinforced polymers.
R3 Printer handles the vast majority of production applications with advanced materials and reinforced polymers.
R3 Printer Ultra is purpose-built for 3D printing parts that need to withstand extreme high-temperature conditions with ultra-performance materials like PEEK, PEKK and PEI/Ultem that most systems can't handle. Note: a 20-amp outlet is needed to operate R3 Printer Ultra.
R3 Printer Ultra is purpose-built for 3D printing parts that need to withstand extreme high-temperature conditions with ultra-performance materials like PEEK, PEKK and PEI/Ultem that most systems can’t handle. Note: a 20-amp outlet is needed to operate R3 Printer Ultra.
