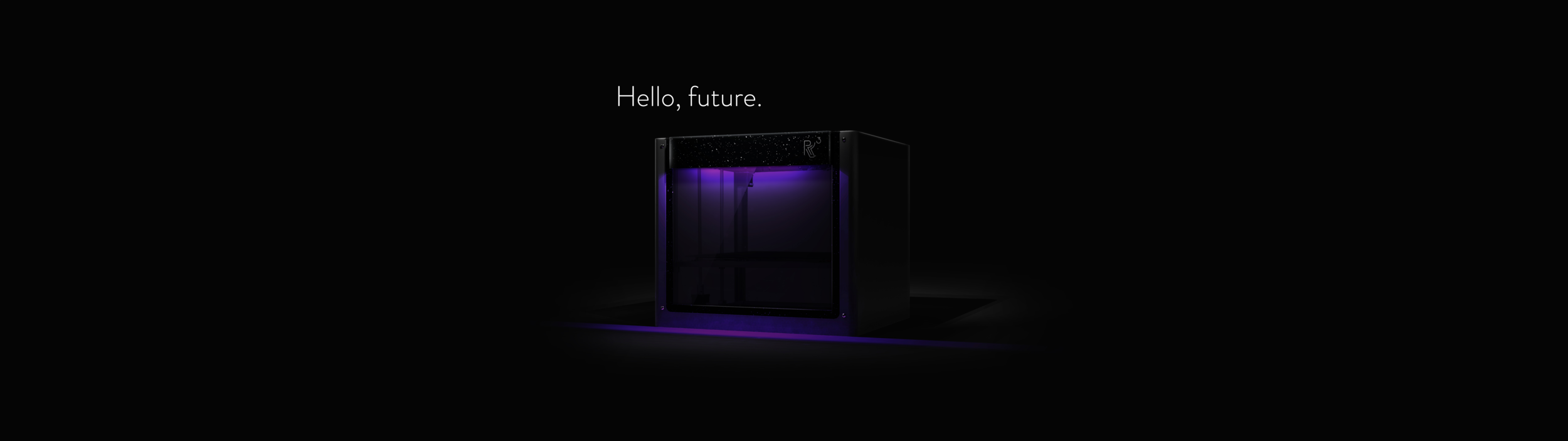

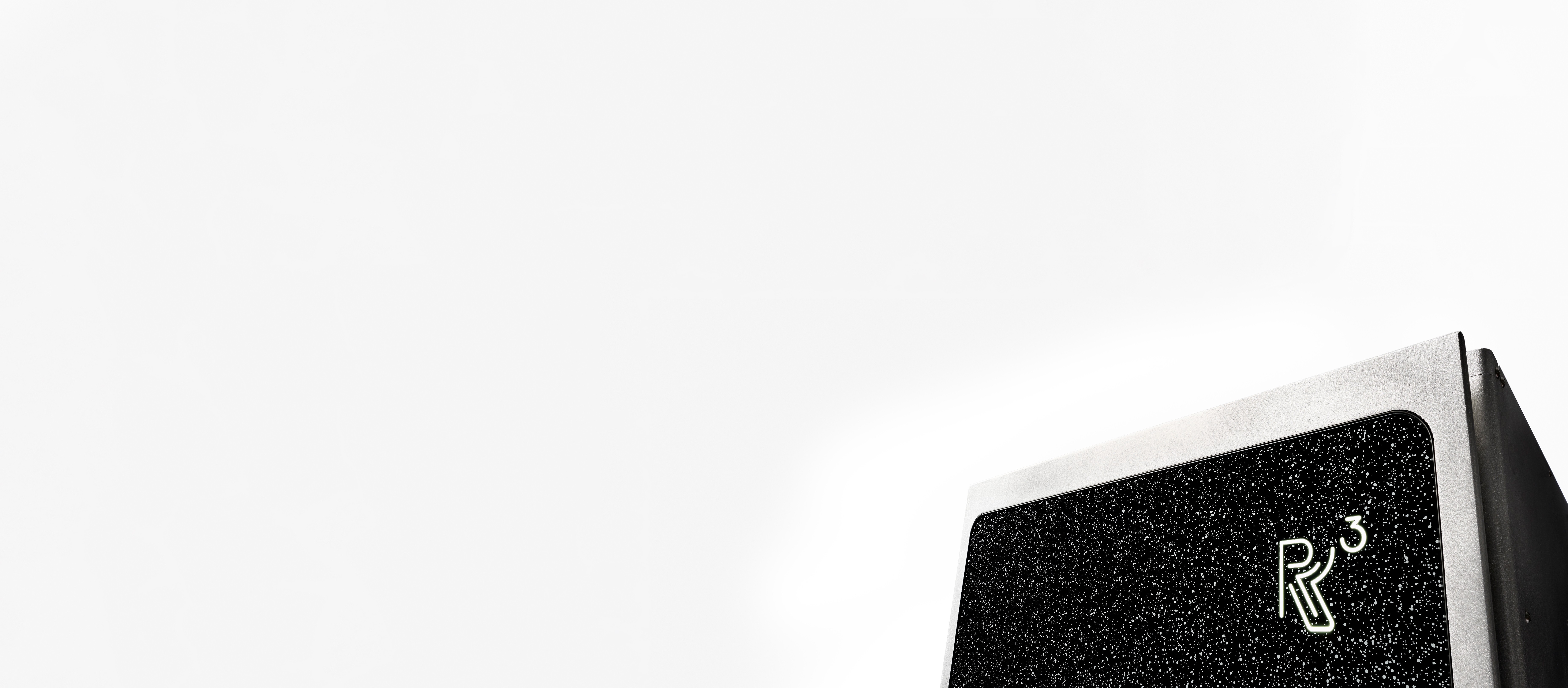

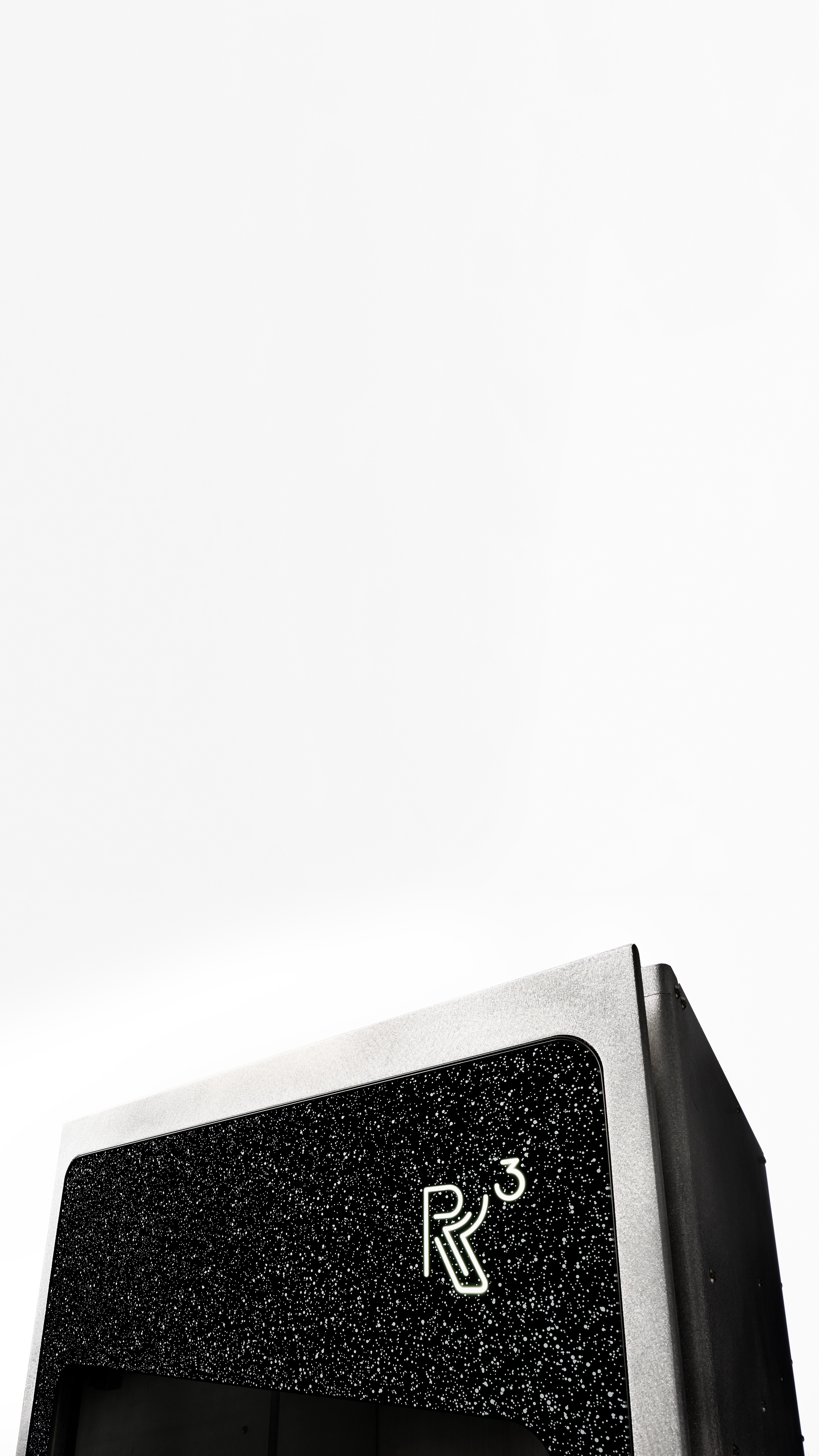

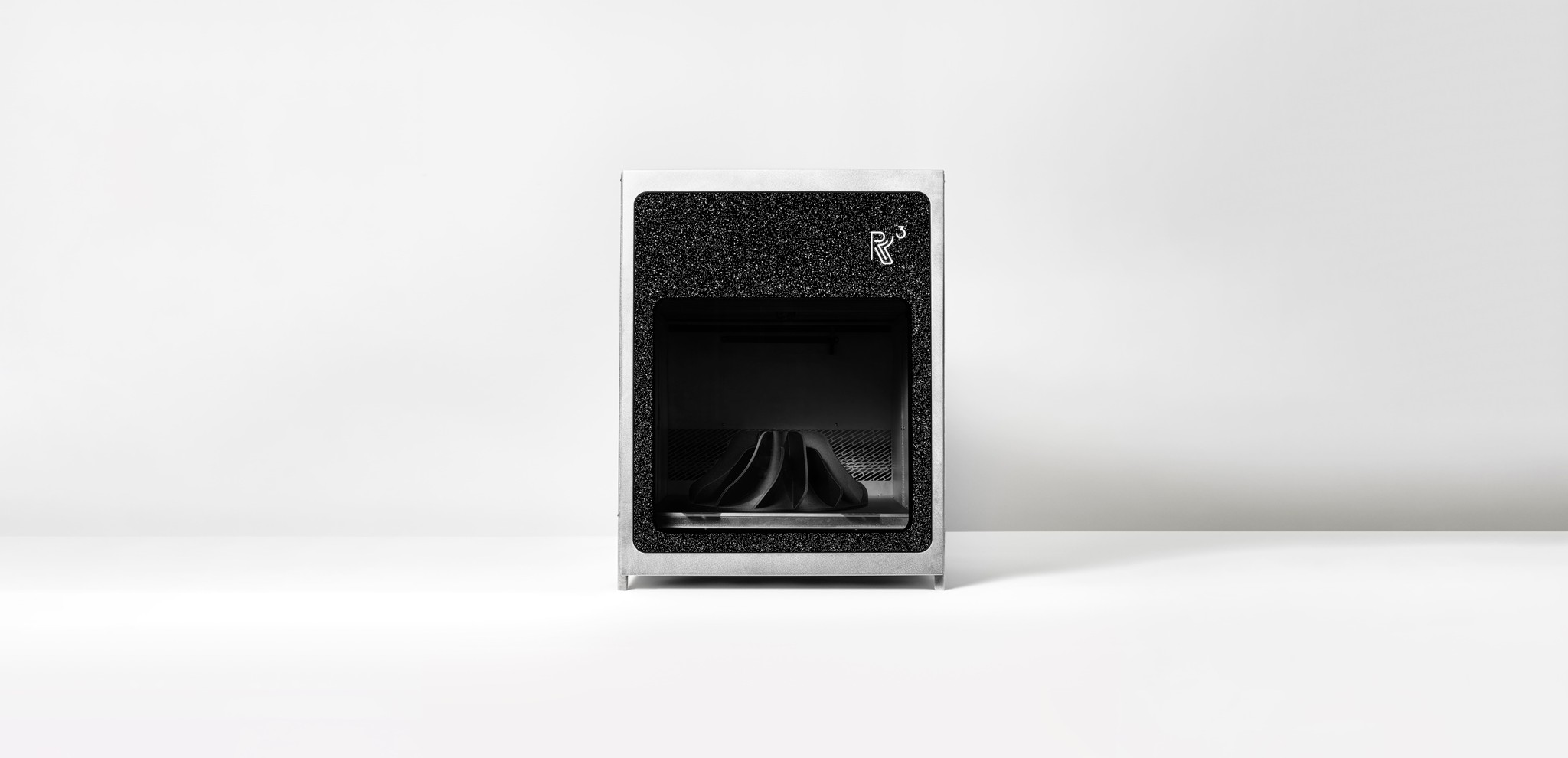

Technology designed for high uptime, high throughput, and effortless operation, R3 Printer gives a faster, more flexible path to production—part after part.
High performance. Low friction. Ready for real production.
High performance. Low friction. Ready for real production.
Advanced features that deliver results today and the freedom to build tomorrow
Where performance starts.
Technical Specifications for:
R3 Printer
R3 Printer Ultra
Technology
Technology:
Fused Filament Fabrication (FFF)
Print Head:
Dual-Nozzle with Inactive Nozzle Lift
Printing Capabilities
Build Volume:
450mm x 370mm x 370mm (X, Y, Z) [17.7in x 14.6in x 14.6in]
Max. Nozzle Temp:
500° C
Max. Build Chamber Temp:
150° C
Max. Build Plate Temp:
200° C
X/Y Resolution:
±150μm
Z Resolution (Layer Height):
50μm – 1.0mm (Default: 200μm)
Dual Material Printing:
Yes (Primary + Support, Dual Material, Dual Color)
Materials
Filament Diameter:
1.75mm
Reinforced Materials Capable:
Yes (ex. Carbon Fiber-Reinforced, Glass Fiber-Reinforced)
Material Compatibility:
Open (Non-Proprietary)
Examples of Materials: (including but not limited to)
PEEK, PEKK, PEI (Ultem), TPI, PSU, PES, PPSU, ASA, PC, PA (Nylon), CoPA, PP, PPS, PPE, PPA (HTN), PVDF, ABS, PLA, PETG, PCTG, HIPS, PVA, BVOH, etc.
Consumables
Nozzle Diameter:
0.25mm – 1.4mm (0.4mm Default)
Nozzle Material:
Abrasion-Resistant Hardened Steel with Non-Stick Coating
Rapid Nozzle Change:
Yes, No Tools Required
Build Plate:
Removable Spring Steel with Matte High-Adhesion Coating
Reliability & Uptime Features
First Layer Calibration:
Automatic
Print Head Nozzle Offset Calibration:
Automatic
Additional Features:
Liquid Cooled Print Head, Print Head Active Overheat Prevention™, Material Jam Detection, Material Runout Detection, Full Self-Monitoring & Chassis Overheat Protection
Software & Networking
Connectivity:
Ethernet: Client Mode, Direct / Point to Point Mode WiFi: Client Mode (incl. WPA3-Enterprise), Access Point Mode USB
Cloud / Internet Access:
Not Required (all functions available without internet access)
Supported File Types:
.stl, .obj, .amf, .3mf, .step
Machine Size & Weight
Machine Size:
605mm W x 585mm D x 770mm H [23.82in x 23.03in x 30.32in]
Machine Weight:
65 kg [143.3 lbs]
Chassis Construction:
5052-H32 Aluminum Exoskeleton
Power Requirements
AC Input Voltage:
120v, 20A Required
AC Input Frequency:
50Hz - 60Hz
Made in the USA
R3 Printer Ultra is designed and built in the USA.
Where performance starts.
Technical Specifications for:
R3 Printer
R3 Printer Ultra
Technology
Technology:
Fused Filament Fabrication (FFF)
Print Head:
Dual-Nozzle with Inactive Nozzle Lift
Printing Capabilities
Build Volume:
450mm x 370mm x 370mm (X, Y, Z) [17.7in x 14.6in x 14.6in]
Max. Nozzle Temp:
500° C
Max. Build Chamber Temp:
150° C
Max. Build Plate Temp:
200° C
X/Y Resolution:
±150μm
Z Resolution (Layer Height):
50μm – 1.0mm (Default: 200μm)
Dual Material Printing:
Yes (Primary + Support, Dual Material, Dual Color)
Materials
Filament Diameter:
1.75mm
Reinforced Materials Capable:
Yes (ex. Carbon Fiber-Reinforced, Glass Fiber-Reinforced)
Material Compatibility:
Open (Non-Proprietary)
Examples of Materials: (including but not limited to)
PEEK, PEKK, PEI (Ultem), TPI, PSU, PES, PPSU, ASA, PC, PA (Nylon), CoPA, PP, PPS, PPE, PPA (HTN), PVDF, ABS, PLA, PETG, PCTG, HIPS, PVA, BVOH, etc.
Consumables
Nozzle Diameter:
0.25mm – 1.4mm (0.4mm Default)
Nozzle Material:
Abrasion-Resistant Hardened Steel with Non-Stick Coating
Rapid Nozzle Change:
Yes, No Tools Required
Build Plate:
Removable Spring Steel with Matte High-Adhesion Coating
Reliability & Uptime Features
First Layer Calibration:
Automatic
Print Head Nozzle Offset Calibration:
Automatic
Additional Features:
Liquid Cooled Print Head, Print Head Active Overheat Prevention™, Material Jam Detection, Material Runout Detection, Full Self-Monitoring & Chassis Overheat Protection
Software & Networking
Connectivity:
Ethernet: Client Mode, Direct / Point to Point Mode WiFi: Client Mode (incl. WPA3-Enterprise), Access Point Mode USB
Cloud / Internet Access:
Not Required (all functions available without internet access)
Supported File Types:
.stl, .obj, .amf, .3mf, .step
Machine Size & Weight
Machine Size:
605mm W x 585mm D x 770mm H [23.82in x 23.03in x 30.32in]
Machine Weight:
65 kg [143.3 lbs]
Chassis Construction:
5052-H32 Aluminum Exoskeleton
Power Requirements
AC Input Voltage:
120v, 20A Required
AC Input Frequency:
50Hz - 60Hz
Made in the USA
R3 Printer Ultra is designed and built in the USA.
Which R3 Printer is right for you?
Which R3 Printer is right for you?
Here's a breakdown of all the key differences between R3 Printer and R3 Printer Ultra:
R3 Printer handles the vast majority of production applications with advanced materials and reinforced polymers.
R3 Printer handles the vast majority of production applications with advanced materials and reinforced polymers.

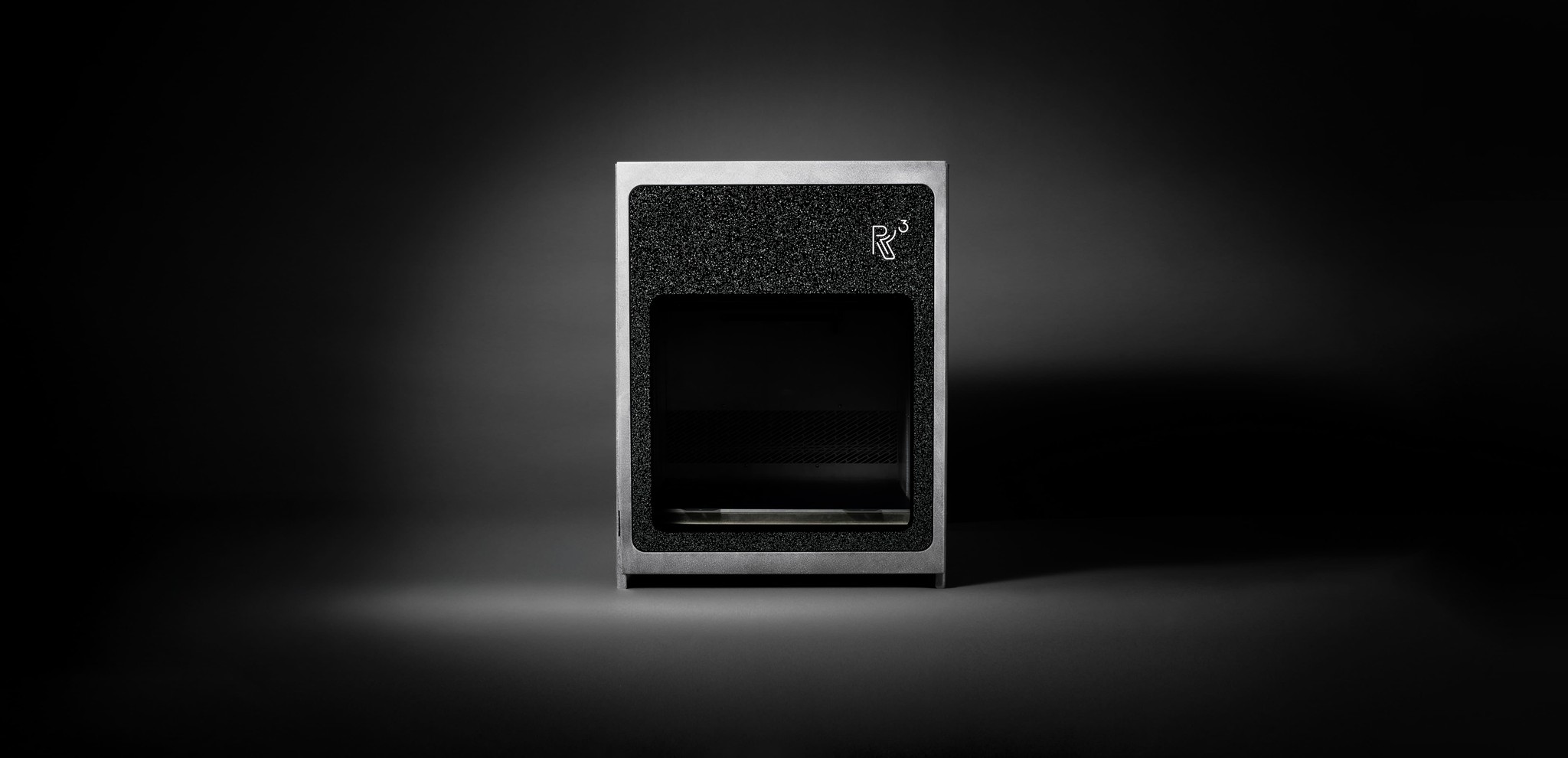

R3 Printer Ultra is purpose-built for 3D printing parts that need to withstand extreme high-temperature conditions with ultra-performance materials like PEEK, PEKK and PEI/Ultem that most systems can't handle. Note: a 20-amp outlet is needed to operate R3 Printer Ultra.
R3 Printer Ultra is purpose-built for 3D printing parts that need to withstand extreme high-temperature conditions with ultra-performance materials like PEEK, PEKK and PEI/Ultem that most systems can’t handle. Note: a 20-amp outlet is needed to operate R3 Printer Ultra.
