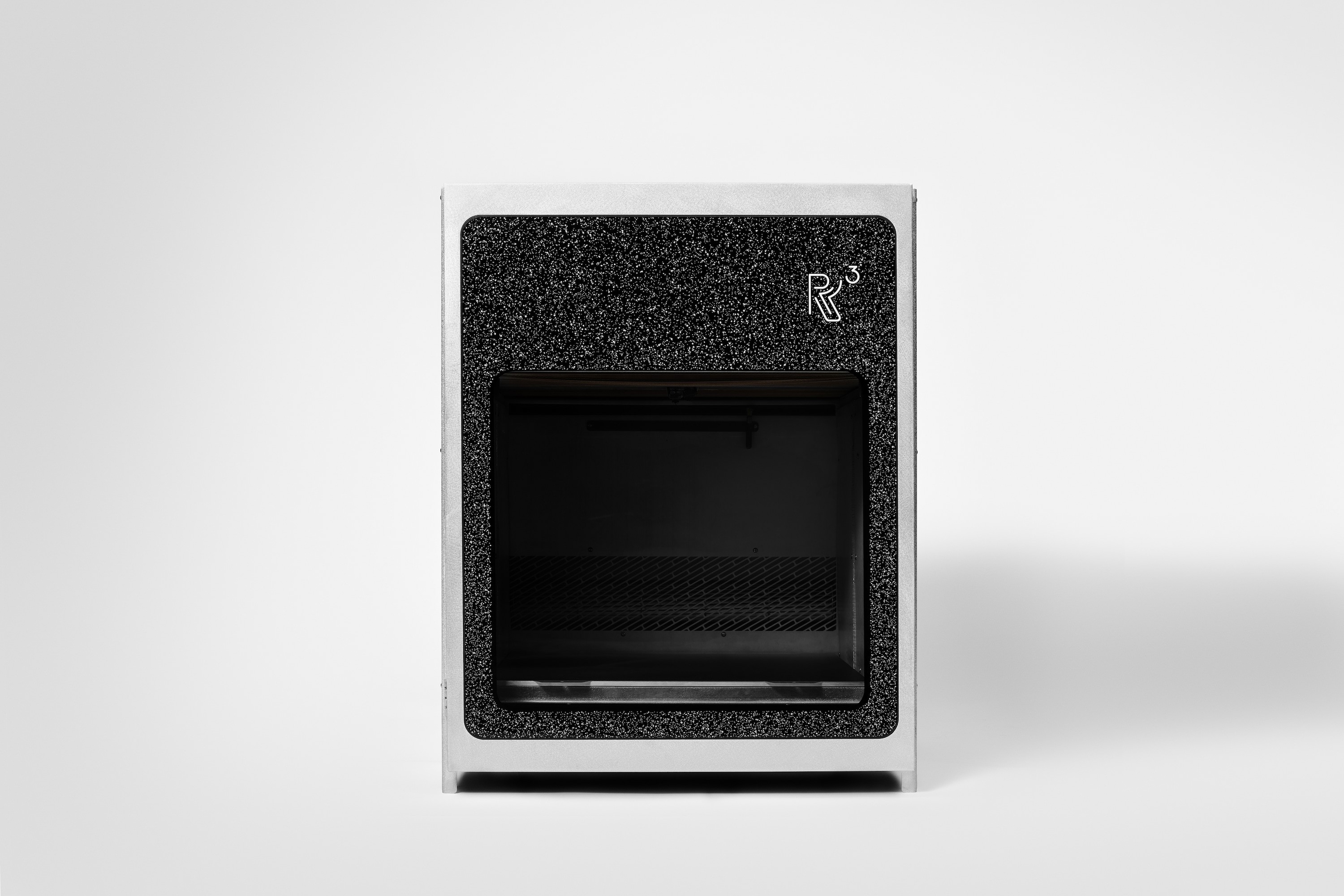

R3 Printer is a high-performance 3D printer built for production without compromise. Every system choice is intentional, designed to reduce friction and deliver consistent results at scale. With high-temperature capability, including powerful heaters and a dedicated heated chamber, R3 Printer is built for advanced materials and supports high-temperature thermoplastics as well as carbon and glass fiber-filled materials, without proprietary lock-in.
Integrated reliability features enable long, uninterrupted print runs even at elevated chamber temperatures while automatic calibration keeps workflows efficient and predictable.
Designed and built in the USA.
Technology
Technology:
Fused Filament Fabrication (FFF)
Print Head:
Dual-Nozzle with Inactive Nozzle Lift
Printing Capabilities
Build Volume:
450mm x 370mm x 370mm (X, Y, Z) [17.7in x 14.6in x 14.6in]
Max. Nozzle Temp:
500° C
Max. Build Chamber Temp:
90° C
Max. Build Plate Temp:
150° C
X/Y Resolution:
±150μm
Z Resolution (Layer Height):
50μm – 1.0mm (Default: 200μm)
Dual Material Printing:
Yes (Primary + Support, Dual Material, Dual Color)
Materials
Filament Diameter:
1.75mm
Reinforced Materials Capable:
Yes (ex. Carbon Fiber-Reinforced, Glass Fiber-Reinforced)
Material Compatibility:
Open (Non-Proprietary)
Examples of Materials: (including but not limited to)
PLA, PETG, PCTG, ABS, ASA, PC, CoPA, Nylon (PA), PP, PPS, PPA (HTN), HIPS, PVA, BVOH
Consumables
Nozzle Diameter:
0.25mm – 1.4mm (0.4mm Default)
Nozzle Material:
Abrasion-Resistant Hardened Steel with Non-Stick Coating
Rapid Nozzle Change:
Yes, No Tools Required
Build Plate:
Removable Spring Steel (Matte High-Adhesion Coating Default)
Reliability & Uptime Features
Bed Leveling:
Automatic
Print Head Calibration:
Automatic
Additional Features:
Liquid Cooling, Print Head Active Overheat Prevention™, Material Jam Detection, Material Runout Detection, Self-Monitoring & Chassis Overheat Protection
Software & Networking
Connectivity:
Ethernet: Client Mode, Direct / Point to Point Mode WiFi: Client Mode (incl. WPA3-Enterprise), Access Point Mode USB
Cloud / Internet Access:
Not Required (all functions available without internet access)
Supported File Types:
.stl, .obj, .amf, .3mf, .step
Machine Size & Weight
Machine Size:
605mm W x 585mm D x 770mm H [23.82in x 23.03in x 30.32in]
Machine Weight:
65 kg [143.3 lbs]
Chassis Construction:
5052-H32 Aluminum Exoskeleton
Power Requirements
AC Input Voltage:
120v, 15A minimum (20A recommended)
AC Input Frequency:
50Hz - 60Hz
Made in the USA
R3 Printer is designed and built in the USA with globally-sourced components.
